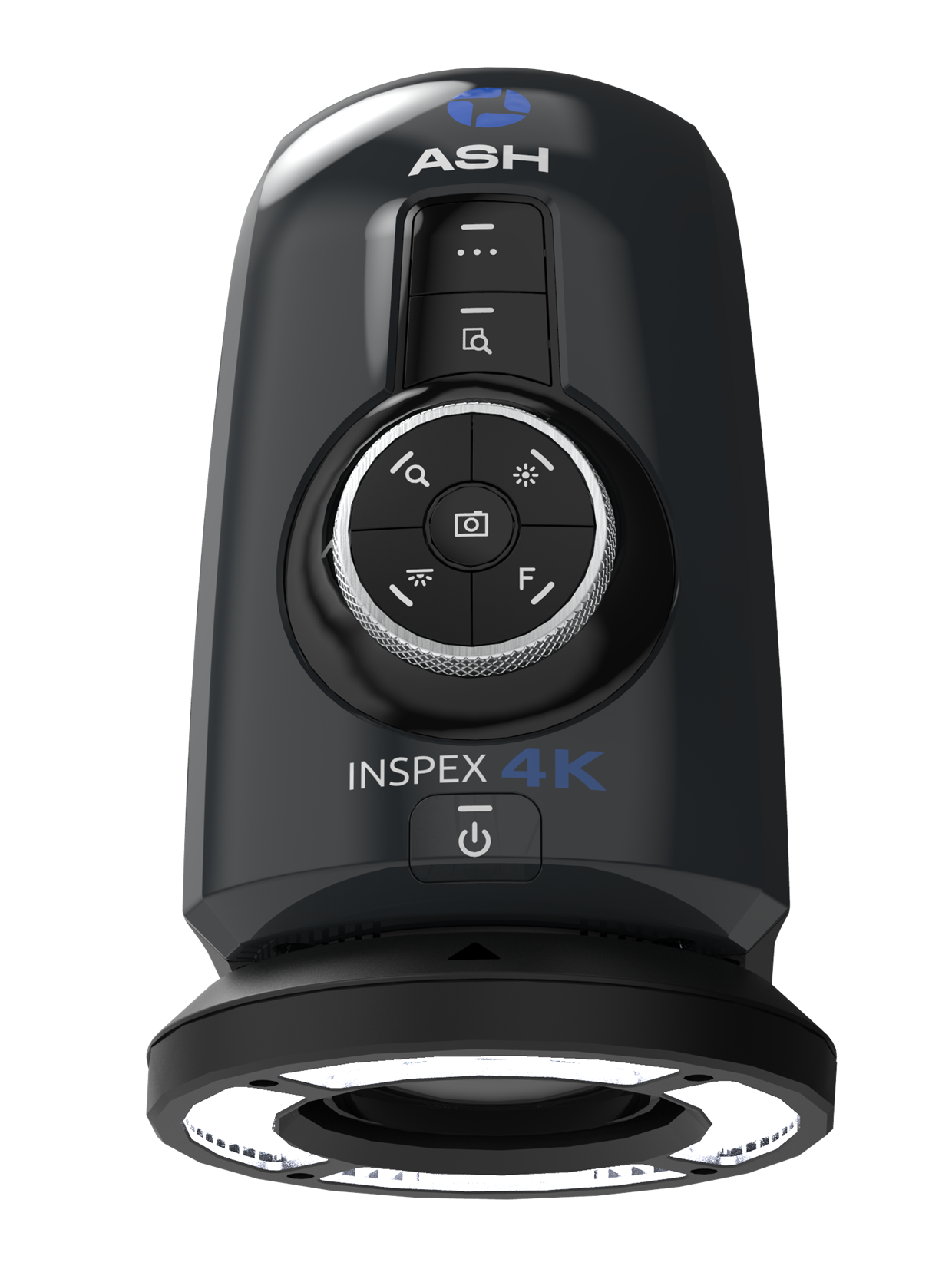

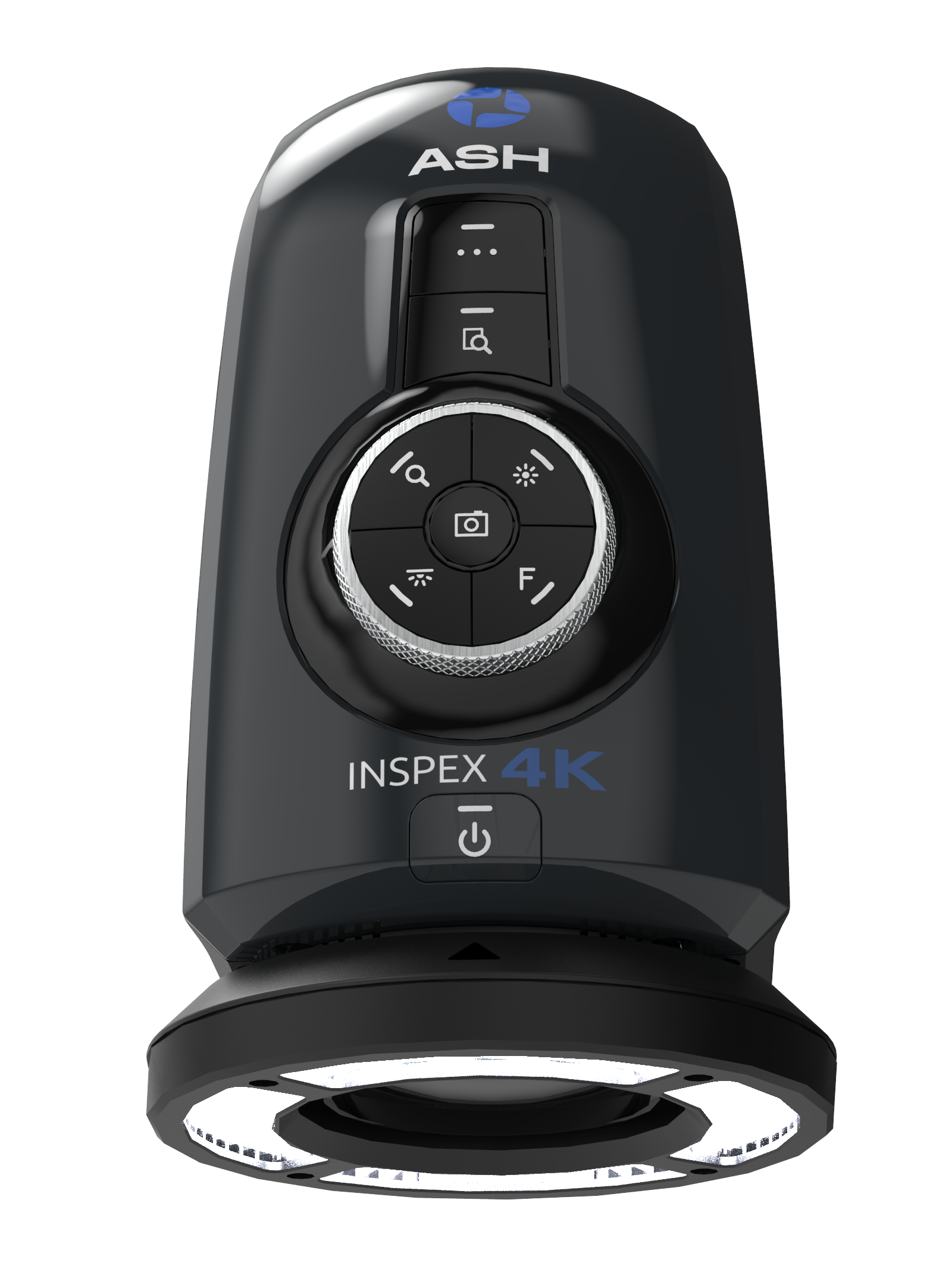

Ultra-High-Definition Inspex 4K - ASH Digital Microscope System

4K digital microscope with optical zoom

Item Number: 8763

Ultra-High-Definition - Inspex 4K

The Inspex 4K is the digital microscope with a 4K camera that delivers four times the resolution of full HD inspection systems. With this system you can experience crystal clear ultra-high definition video imaging, allowing you to see more detail than ever before.

The simple, intuitive interface of the system empowers the end user to inspect parts with ease, simplicity and comfort.

The Inspex 4K offers features such as high-magnification, auto-focus, manual focus, auto-exposure and white balance. You can speed up your inspection process by identifying defective parts faster, easier and in super high resolution.

Instantly transform your manufacturing process


  • Ultra HD Resolution 3840 x 2160 pixels

  • 10x-71x Optical Zoom

  • Higher colour depth and superb image quality

  • Autofocus

  • Image & video capture

  • Improve inspection quality

  • Ergonomic digital solution

  • Faster image response for rework & observing moving parts

  • Easily adjustable working height


Contact us for more information and orders

לפרטים נוספים והזמנות לחצו כאן
Machine Alignment Capability 2Cmk @ ±12.5 microns 6 sigma
Process Alignment Capability 2Cpk @ ±25 microns 6 sigma
Core Cycle Time (excl. printing & cleaning) < 8.5 secs
Product Changeover Time < 3 mins
New Product Set-up Time < 10 mins



Max. Size (L x W) 400 mm x 300 mm
Min. Size (L x W) 50 mm x 50 mm
Thickness 0.4 ~ 6 mm
PCB Thickness Adjustment Manual (Auto is option. PCB max. width reduced to 310 mm)
PCB Max. Weight 3 kg
PCB Edge Clearance 3 mm
PCB Bottom Clearance 15 mm (7 mm with optional auto PCB thickness adjustment)
PCB Warpage Max. 1% diagonally
Clamping Method Top clamp (manual) and motorized side clamp
Support Method Magnetic support pins, bars, blocks, Vacuum suction
Conveyor Direction L to R, R to L, R to R, L to L (software control)
Conveyor Height / Speed 900 ± 40 mm / Max. 1,500 mm/s
Conveyor Width Adjustment Automatic



Hardware LCD Monitor, Mouse & Keyboard
Operating System (OS) Windows 7 or Higher
Control Method Industrial PC controlled
I/O Interface SMEMA Standard



Stencil Frame Size (L X W) Adjustable, 470 mm x 370 mm to 737 mm x 737 mm
Print Gap (snap-off) 0 ~ 20 mm
Printing Table Adjustment Range X: ±3 mm, Y: ±7 mm : ± 2°
Print Speed 6 ~ 200 mm/s
Squeegee Pressure 0.5 ~ 10kg (program control)
Squeegee Type / Angle Std.: Metal (Option: OPC, rubber) / Std. 60° (Option: 45°, 50°, 55°)
Cleaning System Auto wet, dry, vacuum (software select)



Field-of-View (FOV) 8 mm x 6 mm
Fiducial Types Circle, triangle, square, diamond, cross
Fiducial size 0.5 ~ 3.0 mm
Vision Methodology CCD camera look up & down
2D inspection Max. 100 windows to inspect missing & insufficient (std.)



Power Supply AC 220V ± 10% 50/60Hz
Power Consumption 2.5kW
Air Supply 4 ~ 6 Kgf/cm²
Dimension (excl. signal tower) 1,158(L) x 1,362(W) x 1,463(H) mm
Machine Weight 1,000 kg

Similar Products

ASH - INSPEX-3 Digital Microscope System
ASH - INSPEX-3 Digital Microscope System
ASI - UM 20 Digital Microscope
ASI - UM 20 Digital Microscope

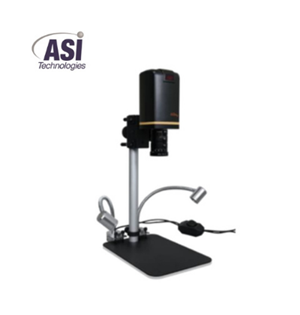

ASI - UM08-CSZ1236 Tabletop HDMI Inspection Microscope
