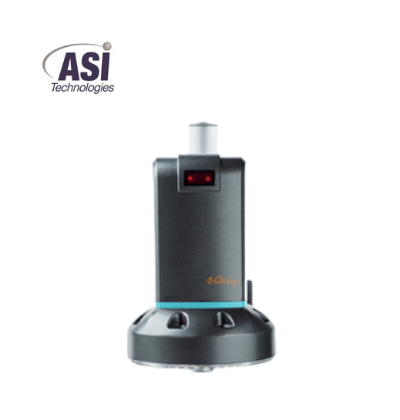

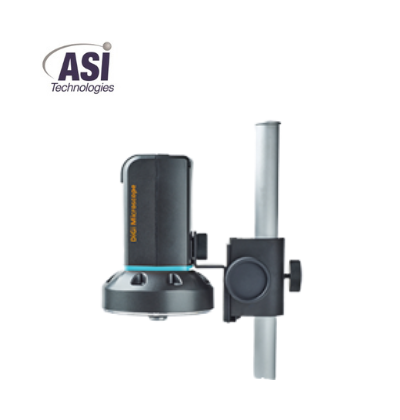

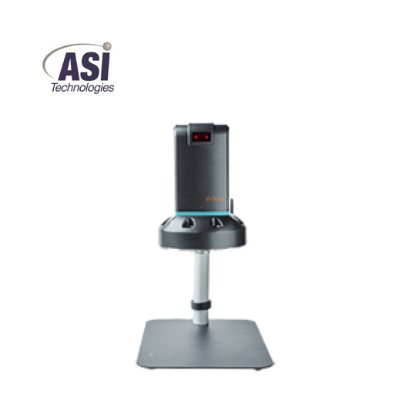

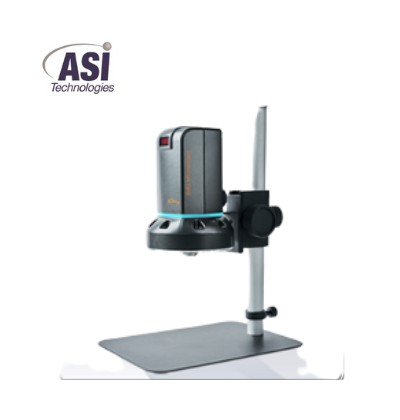

ASI - UM 20 Digital Microscope

13x–140x Digital Inspection Microscope

Item Number: 7260

Specification:

1.Magnification: 13x -140x on 24’’ monitor

2.Working Distance: 22mm- 214mm

3.CMOS Sensor: 2M Pixels

4.Interface of Output: 1080P Full HD & USB 3.0 TYPE-C High Speed Transmission

5.Focus System: IR Remote Control, Alternative Auto and Manual Focus

6.Light: Built-in 30PCB of Wide Angle LED, Allow to Adjust Brightness

7.Optional 10x Lens: Magnification up to 497x

8.Device Dimension: φ106 x152 (H)mm

9.Power Supply: DS 5V/2A, Cable Length: 180cm

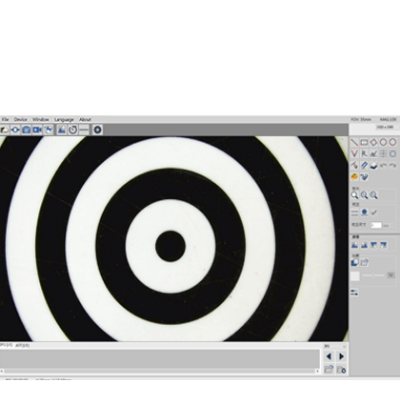

Software:

1.Software Function: Auto- Calibration, 2D Measurement, Image Comparison… etc

2.Software Platform: Windows (7,8,10) 32/64bits, Mac & Android

3.Device Platform: Windows, Mac & Android

לפרטים נוספים והזמנות לחצו כאן
Magnification x -140x on 24” monitor 13
Working Distance 22mm - 214mm
CMOS Sensor 2M Pixels
Interface of Output 1080P Full HD & USB 3.0 TYPE-C High Speed Transmission
Focus System IR Remote Control, Alternative Auto and Manual Focus
Light Built-in 30PCB of Wide Angle LED, Allow to Adjust Brightness
Optional 10x Lens Magnification up to 497x
Device Dimension φ106 x152 (H)mm
Power Supply DS 5V/2A, Cable Length: 180cm
