| System Specifications |

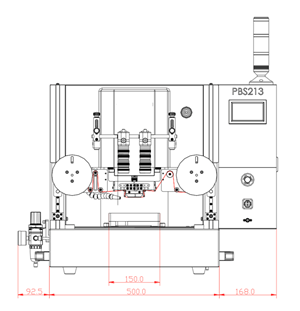

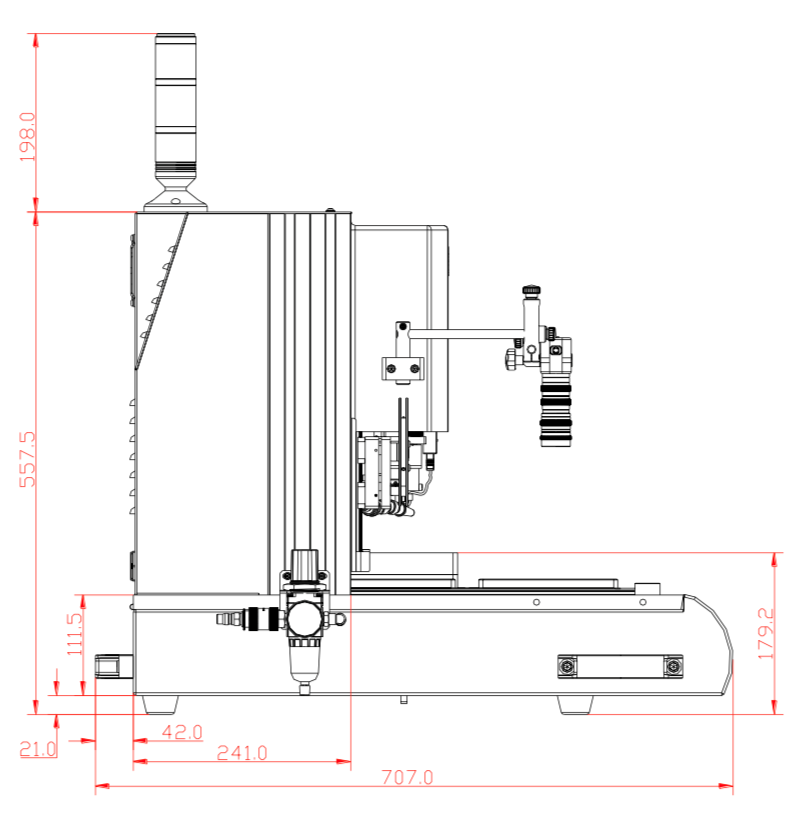

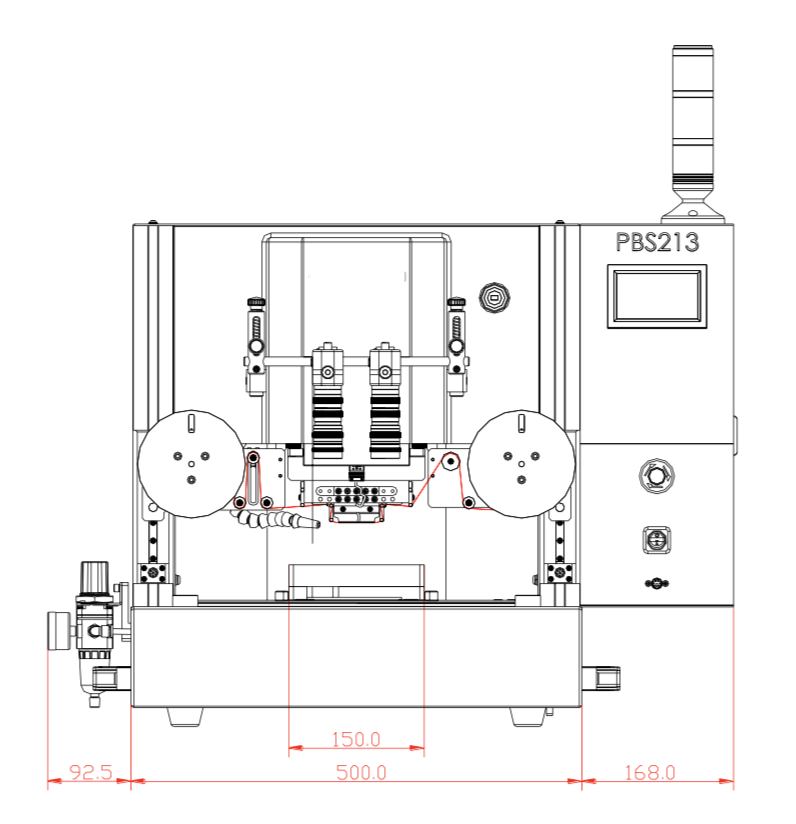

| Dimensions |
630 mm x 520 mm x 500 mm |
| Weight (without fixtures) |
60 Kg |
| Power consumption |
220V / 50Hz or 110V / 60Hz, 2KVA (Factory preset) |
| Air supply |
4 to 6 Kg/cm² |
| Maximum fixture height |
48 mm |
| Fixture assembly baseplate |
150 mm x 150 mm ( 2 sets) |
| Starting operation method |
Two hand control |
| Turntable actuation |
Pneumatic (PBS213); Manual (PBS203) |
| Vacuum for components holding |
2 sets; built-in |
| Password |
6 digits (2-level) |
| Thermode Specifications |
| Force range |
20 N to 500 N |
| Force accuracy |
± 2 N |
| Actuation type |
Pneumatic |
| Thermode stroke |
50 mm maximum |
| Thermode length |
100 mm maximum |
| Pulsed Heat Control Specifications |
| Heating method |
Pulsed heating, high speed PID control |
| Temperature range preheat / heat |
50 to 500 °C (1 degree increment) |
| Time period preheat / heat |
1 to 60 seconds (1 second increment) |
| Temperature accuracy |
± 2 °C |
| Programmable heat profile |
3 programs, non-volatile |
| Thermocouple |
K type |
| Communication port |
RS-232C |
