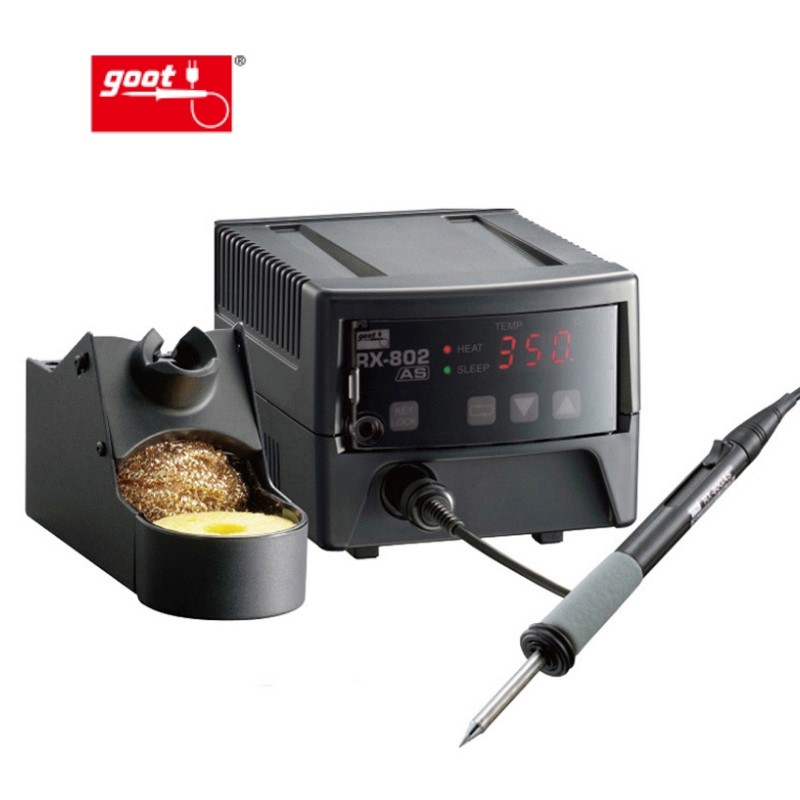

Goot - RX-802ASPH Nitrogen Soldering 80W

Compact Nitrogen Soldering Station

Item Number: 4730

Free Nitrogen Soldering Station

Station Unit, Soldering Iron (RX-80GASPH / Tip is not included), Soldering Iron Stands (ST-21) Brass Wool & Sponges included, Tip changing tool(RX-80PHC)


  • All-in-one N2 Nozzle Tips (PAT.)

  • Each RX-80HRT tip is euipped with a slim N2 nozzle.

  • Slim N2 Nozzles

  • φ6.4mm slim N2 nozzles. Get into small spaces easily.

  • Light and Easy-to-use Handpiece

  • Handpiece weighs only 33g. So light it’s hard to believe it’s for a Nitrogen station!

  • Flexible N2 Induction Tube

  • Super-flexible. Allows free maneuvering of handpiece.

  • Special Tool for Easy Tip Replacement

  • Comes with a handy tool to change a hot tip easily.

  • Improving Lead-free Soldering

  • Advantages of Preheating with Nitrogen.

לפרטים נוספים והזמנות לחצו כאן
דגם RX-802AS
מתח הפעלה 110V, 120V, 130V, 220V, 230V, 240V AC 50/60Hz
צריכת הספק 80W
אורך כבל חשמל 1.2 מטר
טווח הגדרת טמפרטורה 50–450°C
יציבות טמפרטורה (Ripple) ±5°C (ללא עומס)
התנגדות בידוד מעל 100MΩ (ב-500V DC)

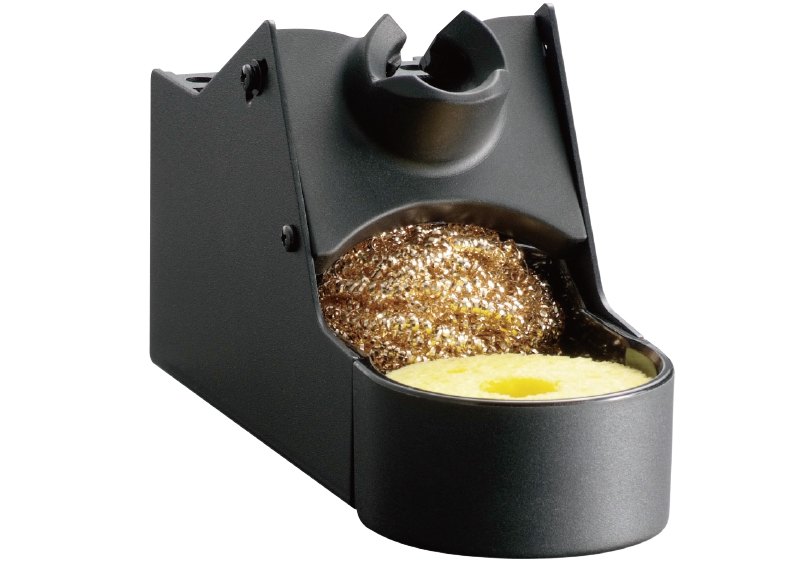

אביזרים מעמד למלחם (ST-21)

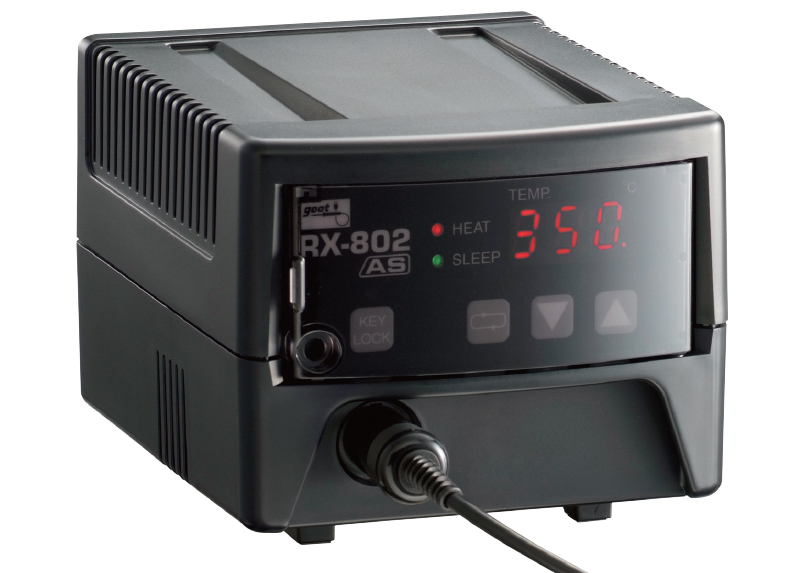

יחידת בקרה (Control Unit)
מתח מוצא 24V AC
מידות (W x H x D) 115 x 98 x 146 mm
משקל 1.8 ק"ג

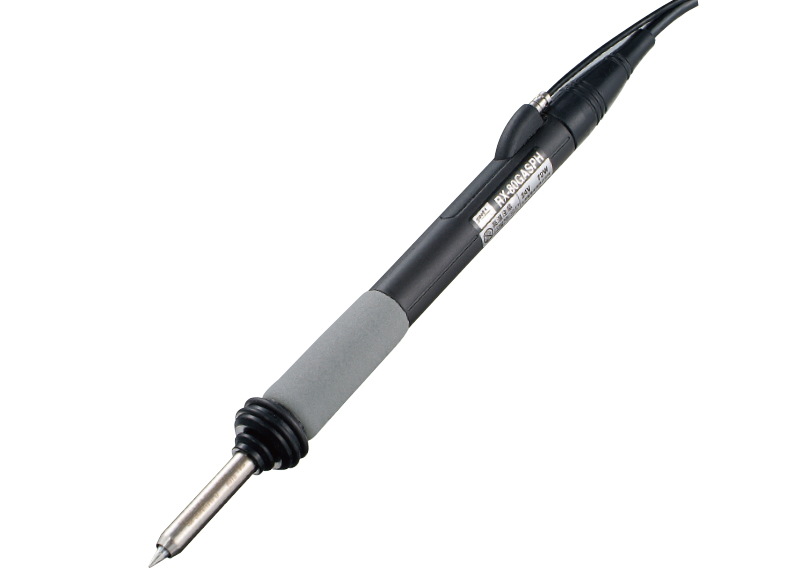

יחידת הלחמה (Soldering Unit)
מתח / צריכת הספק 24V AC / 72W
התנגדות הארקה פחות מ-2Ω
מתח זליגה פחות מ-2mV
גוף חימום ניכרום (Nichrome heater)
אורך כבל 1.2 מטר
אורך המלחם 158 מ"מ (עם ראש RX-80HRT-MB)
משקל 28 גרם (עם ראש RX-80HRT-MB)
