ASI Forced-Air Drying Ovens, 80 to 1000 L – Model Comparison

Precision drying oven with PID control

Item Number: 5343

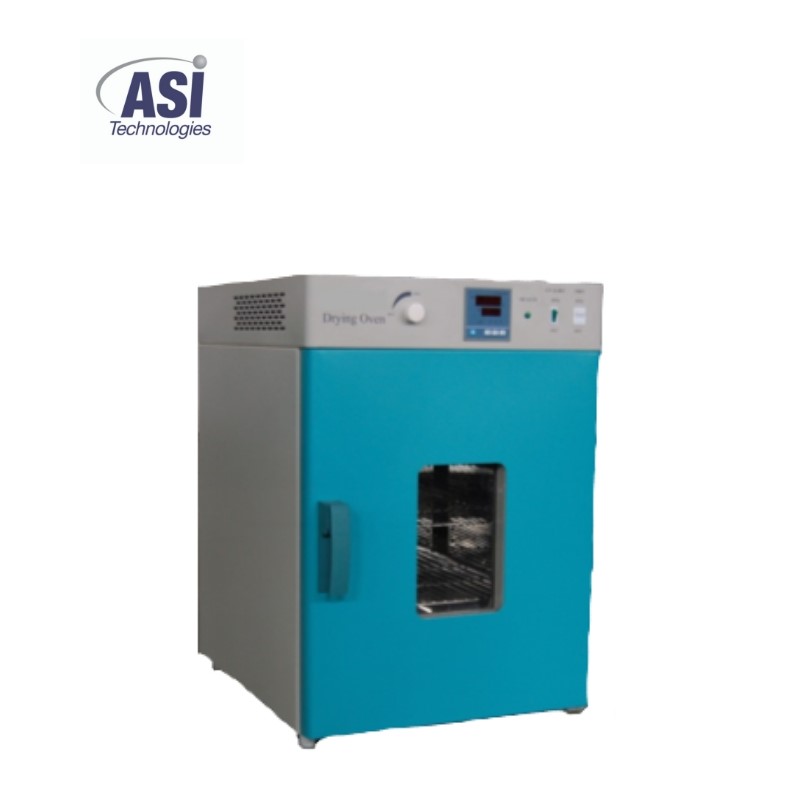

ASI Forced-Air Drying Ovens, 80 to 1000 L

Drying ovens for industry and laboratories: drying, baking, wax melting and sterilization in production plants, laboratories and research institutes. Forced hot-air circulation and a digital PID controller keep the temperature stable (±1.0°C) and uniform throughout the chamber.

Best seller: ASI-9240A, the choice of most of our customers: 220 L in a spacious 600 × 500 × 750 mm chamber, 2 shelves and a standard AC220V supply.

Why an ASI drying oven?

  • Temperature range RT+10 to 200°C, with an option for operation up to 250°C
  • Fluctuation ±1.0°C and uniformity ±3% (test point 100°C)
  • Mirror-finish stainless-steel chamber, durable and easy to clean
  • Over-temperature deviation protection and built-in timer up to 9999 min
  • Air intake and exhaust adjustable from the control panel
  • Options: multi-stage programmable LCD controller, independent temperature-limit controller with alarm, RS485 interface, built-in printer, USB data storage and SMS alarm

Models:

Additional sizes available on request: ASI-9140A, ASI-9420A, ASI-9620A. Contact us to match the size to your needs.

Compare the models in the “Specification” tab and click a model name for full details. Not sure which oven suits your process? Contact us and we will help you choose.

For more details and reservations click here
Model ASI-9070A ASI-9240A
Best seller
ASI-9920A
P/N 50309 50310 50326
Capacity 80 L 220 L 1000 L
Internal dimensions W × D × H (mm) 450 × 400 × 450 600 × 500 × 750 800 × 700 × 1590
External dimensions W × D × H (mm) 740 × 530 × 630 880 × 630 × 930 1050 × 880 × 2060
Shelves (standard) 2 2 4
Power supply AC220V, 50Hz AC380V, 50Hz
Input power 1550 W 2450 W 5200 W
Temperature range RT+10 ~ 200°C (250°C optional)
Temperature fluctuation ±1.0°C
Temperature resolution 0.1°C
Temperature uniformity ±3% (test point: 100°C)
Timer range 0 ~ 9999 min
Controller Microcomputer PID with digital display, over-temperature deviation protection and timer
Air circulation Hot-air circulation fan; intake/exhaust adjustable from the control panel
Interior Mirror-finish stainless steel, argon-arc welded
Full details ASI-9070A ASI-9240A ASI-9920A
Note Performance parameters tested with no load, at an ambient temperature of 20°C and 50% RH

Additional sizes available on request: ASI-9140A, ASI-9420A, ASI-9620A. Contact us to match the size to your needs.

  • Temperature fluctuation ±1.0°C, resolution 0.1°C
  • Temperature uniformity ±3% (test point 100°C)
  • Range RT+10 to 200°C, with an option for operation up to 250°C
  • Mirror-finish stainless-steel chamber, argon-arc welded, with steel-sheet exterior
  • Microcomputer PID temperature controller with digital display, over-temperature deviation protection and timer
  • Circulation fan for continuous high-temperature operation and air ducts for uniform chamber temperature
  • Timer range 0–9999 min
  • Synthetic silicone sealing strip, resistant to high temperature and easy to replace
