ASI Automatic Vacuum Drying Ovens – Model Comparison

Programmable vacuum oven for controlled testing

Item Number: 5329

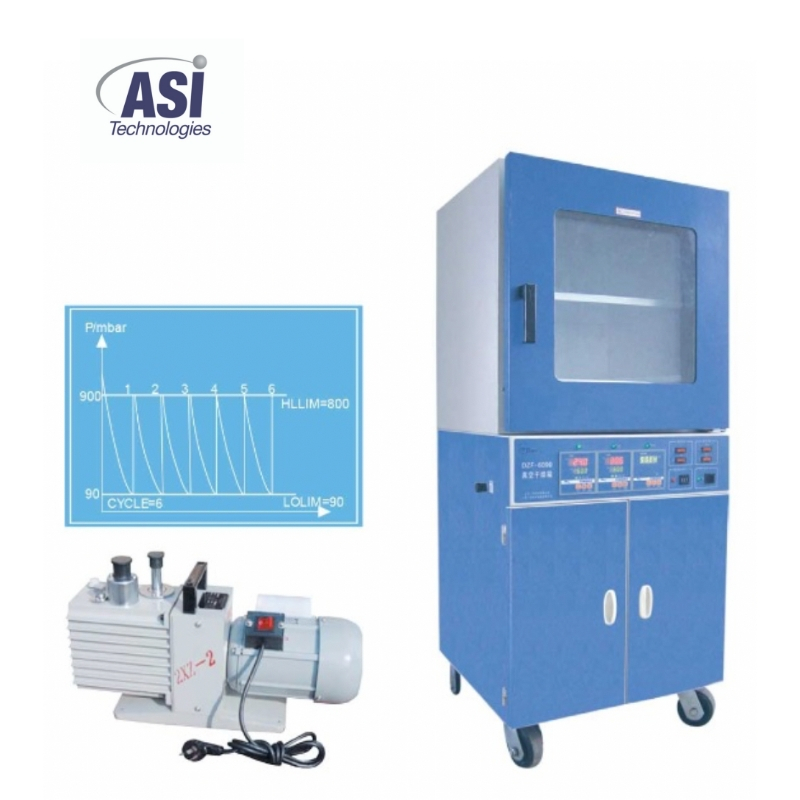

ASI Vacuum Drying Ovens with Automatic Vacuum Control

Vacuum ovens for gentle, fast drying of heat-sensitive materials, materials that decompose or oxidize easily, electronic components and batteries. Drying, heating, testing and storage take place under vacuum (down to 133 Pa) or in an inert-gas atmosphere, free of oxygen, so the material does not oxidize.

Best seller: ASI-6213LC. A large 560 × 600 × 640 mm chamber with 3 shelves, independent temperature control for each shelf and a standard AC220V supply.

Fully automatic vacuum control

A digital pressure sensor and microcomputer controller automatically manage the vacuum level and the vacuum pump via an electromagnetic valve. You set upper and lower vacuum values, and the programmed vacuum cycles (up to 99) run automatically, shortening drying time by more than 50% compared with conventional vacuum ovens.

  • Automatic vacuum control with digital vacuum gauge and silicon resistive pressure sensor
  • Programmable temperature controller: 15 segments, 1–9999 min per segment, including ramp mode
  • Temperature range RT+10 to 200°C, resolution 0.1°C, fluctuation ±1°C
  • 304 stainless-steel chamber, durable and easy to clean
  • Double-layer tempered, impact-resistant glass door, one-piece molded silicone seal and adjustable closing pressure
  • Inert-gas inlet; vacuum pump supplied with the oven

Models:

  • ASI-6093LC, 450 × 450 × 450 mm chamber (P/N 50311)
  • ASI-6213LC, 560 × 600 × 640 mm chamber (P/N 50315) – best seller

Additional sizes available on request: ASI-6033LC, ASI-6063LC, ASI-6123LC, ASI-6503LC, ASI-6933LC. Contact us to match the size to your needs.

Compare the models in the “Specification” tab and click a model name for full details. Need help choosing the right oven for your material and process? Contact us and we will be glad to advise.

For more details and reservations click here

ASI LC Series Automatic Vacuum Ovens specifications

Model ASI-6033LC ASI-6063LC ASI-6093LC ASI-6123LC ASI-6213LC
Best seller
ASI-6503LC ASI-6933LC
ASI P/N 50319 50318 50311 on request 50315 50324 50316
Voltage, 50 Hz AC 220V AC 220V AC 220V AC 220V AC 220V AC 380V AC 380V
Input power 1200 W 1800 W 1350 W 2050 W 2100 W 3800 W 5600 W
Internal dimensions, W×D×H (mm) 320×320×320 400×400×400 450×450×450 500×500×500 560×600×640 630×810×845 750×1160×1050
External dimensions, W×D×H (mm) 550×490×1240 600×570×1390 610×590×1350 660×640×1400 720×820×1750 1000×1040×1855 1400×1395×2010
Shelves 2 3 2 ¹ 3 3 ¹ 4 ¹ 5 ¹
Common to all models
Temperature range RT+10 to 200 °C
Resolution / fluctuation 0.1 °C / ±1 °C
Program 15 segments, 1–9,999 min each; ramp control; scheduled start / stop
Vacuum gauge / sensor Digital display; piezoresistive silicon pressure sensor
Vacuum control 10–10⁵ Pa (minimum vacuum 133 Pa), accuracy ±1%; programmable min / max set points, up to 99 cycles
Vacuum pump Included
Chamber material SS 304 stainless steel
Door Toughened double-layer glass viewing window; adjustable closing; one-piece silicone seal; inert-gas filling
Test conditions Performance measured without load, ambient 20 °C, 50% RH
Note ¹ Independent temperature control per shelf

Additional sizes available on request: ASI-6033LC, ASI-6063LC, ASI-6123LC, ASI-6503LC, ASI-6933LC. Contact us to match the size to your needs.
