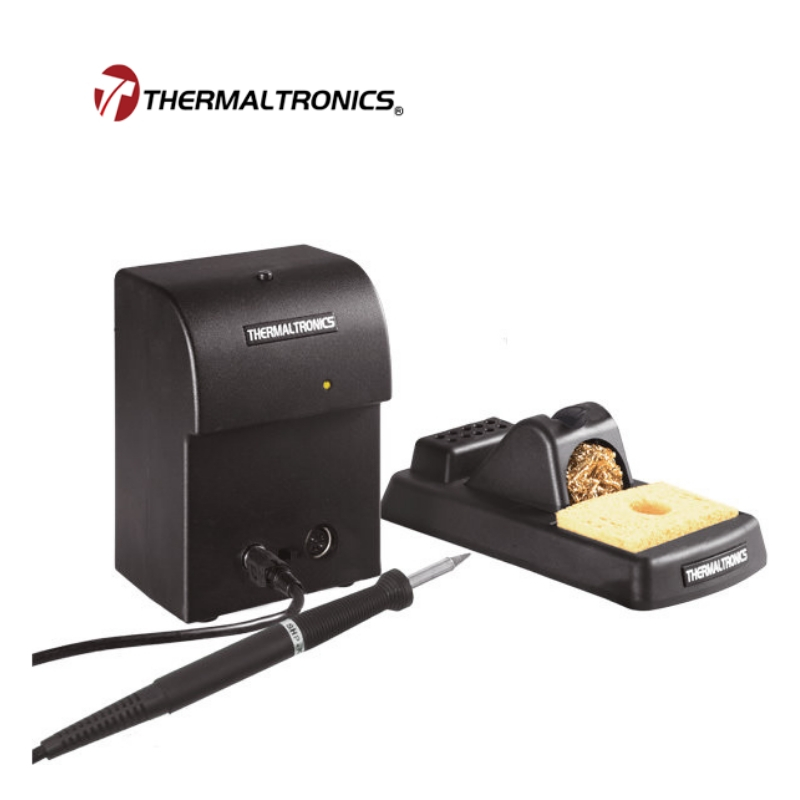

Soldering Station - Thermaltronics - TMT-2000S

Curie Heat Technology Soldering Station

Item Number: 4724

The TMT-2000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by adjusting the power instantaneously, thereby meeting the exact requirements of the substrate component and solder material.

    • Curie Heat Technology operating at 470KHz.



    • Maximum flexibility, allows the use of K, P and S Series tips.



    • Extremely compact, weighs just 1.3KG.



    • No calibration or operator training required.



    • No additional coil assembly costs.



P/N   TMT-2000S-K

לפרטים נוספים והזמנות לחצו כאן
מתח קו כניסה 100-240 VAC, 55W
פוטנציאל בין הקצה להארקה 2mV, true RMS 50-500Hz
התנגדות בין הקצה להארקה < 2 Ohms DC
יציבות טמפרטורה במצב המתנה +/- 1.1°C (2°F)
טמפרטורת מארז מקסימלית 50°C (122°F)
נתיך (Fuse) 250V 1A
הספק מוצא מקסימלי 50 Watts
תדר מוצא 470 Khz
מידות (W x H x D) 110mm x 155mm x 92mm
משקל 1.3 ק"ג
תדר קו כניסה 50/60 Hz
Relevant Documents
TMT2000S
