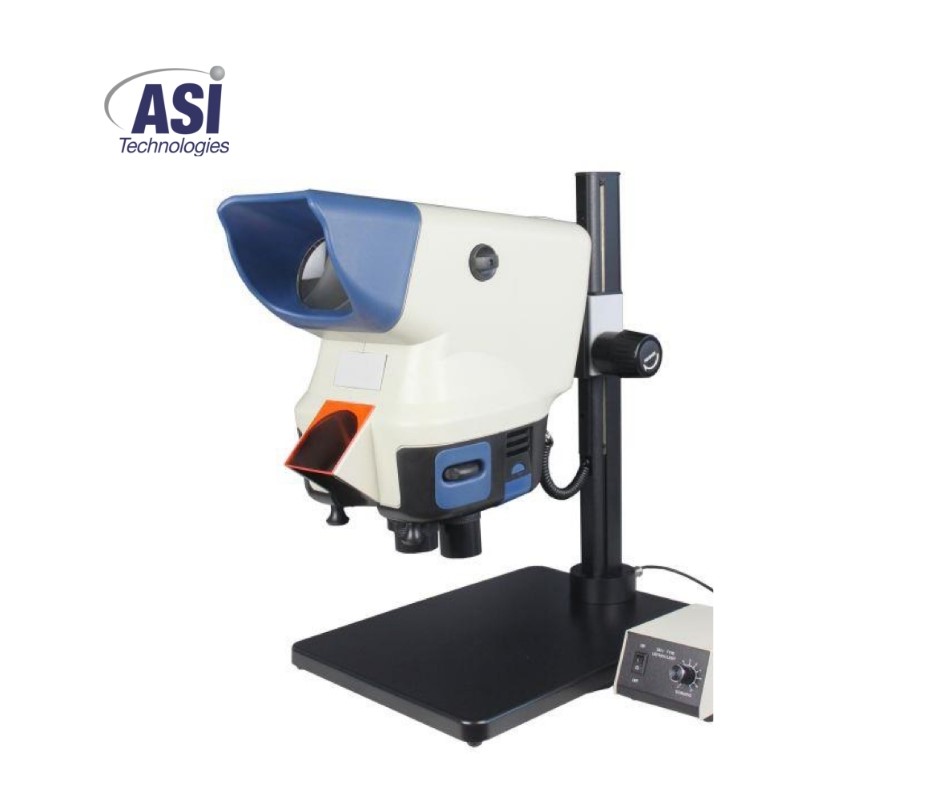

ASI - Dual Power Wide-Field Step microscope

Wide-field stereo microscope with LED

Item Number: 4598

Product Description
Introduction ASI-3070 series stereo microscopes features of large viewing field without eyepiece. Users can see sharp and stereoscopic images from the lens in microscope head. Built-in LED illumination provides bright and even light for comfortable viewing, brightness can be adjusted with the external power box.

The microscopes are easy to operate and widely applied to biological dissection, electronics producing and inspection, minerals, historical relic restoration etc.

P/N 50257

לפרטים נוספים והזמנות לחצו כאן
ASI-3070 Specification Item
Yes high quality optical head without eyepieces ×2 Viewing Head
Yes WD: 208mm, FOV: 68mm ,×2 Objective
Yes WD: 98mm, FOV: 34mm ,×4
Yes WD: 80mm, FOV: 22.7mm ,×6
Optional WD: 58mm, FOV: 17mm ,×8
Optional WD: 46mm, FOV: 13.6mm ,×10
Optional WD: 50mm, FOV: 9.1mm ,×15
Optional SL(Super Long working distance), WD: 115mm, FOV: 22.7mm×6
Yes ×4-×12 Total magnification
Yes 3W built-in LED illumination with external control box Illumination
Yes Column height 500mm, moving range 175mm, Base 400×300×20mm Stand
Yes Column height 580mm, moving range 330mm, Base 400×300×20mm, stage size: 210×190mm
Yes Universal stand can be fixed on table
Yes Coarse focus with focus knob on stand Focus
Yes Focus with handle on head
