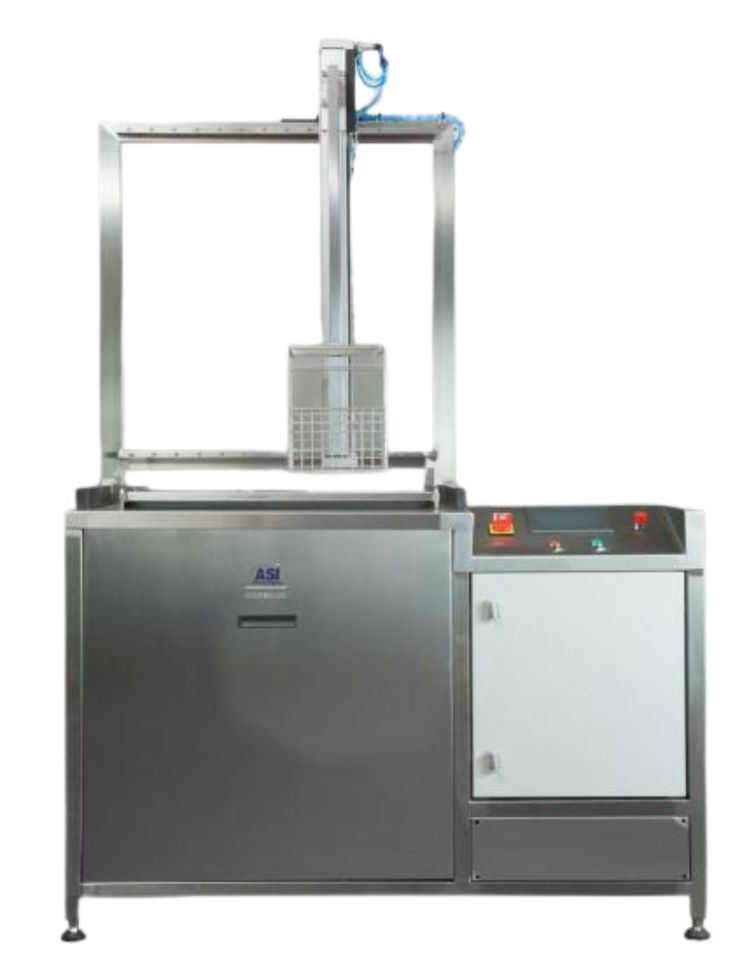

Co/ Mono Solvent Degreaser - ASI2060-250RP

Two-chamber solvent degreaser with external pneumatic robot

Item Number: 62052

The ASI2060-250RP is a two-chamber solvent degreaser designed for controlled solvent cleaning processes. The system combines spray-under-immersion cleaning and ultrasonic cleaning in the washing chamber.

Initial solvent filling volume: 35–40 liters.

Internal chamber dimensions: 320 × 300 × 250 mm.
The basket dimensions are approximately 50 mm smaller on each side than the chamber dimensions.

  • 1 standard basket
  • SUI – Spray Under Immersion in the washing chamber
  • Ultrasonic cleaning in the washing chamber
  • Pump and filter in the washing chamber
  • Two independent refrigeration systems
  • Three cooling zones:
    • Approximately −30°C in the intermediate coils
    • Approximately +2°C to +5°C in the upper and lower coils
  • The tank and all internal parts in contact with the solvent are made of SUS316 stainless steel
  • The external structure is made of SUS304 stainless steel
  • Painted metal electrical cabinet
  • Full control via HMI touchscreen and PLC
  • Two refrigeration units
  • Two 750 W heating elements in the boiling chamber
  • Water separator
  • External pneumatic robot for basket transfer (included in the ASI2060-250RP)

P/N 62052

For more details and reservations click here
Type Two-chamber co-solvent / mono-solvent degreaser
Cleaning methods Spray-under-immersion and ultrasonic cleaning in the washing chamber
Ultrasonics 40 kHz, 300 W
Internal chamber 320 × 300 × 250 mm
Basket 1 standard basket, approx. 50 mm smaller than the chamber on each side
Solvent fill 35–40 L
Filtration Pump and filter in the washing chamber; water separator
Cooling Two independent refrigeration systems; three cooling zones (−30 °C and +2 to +5 °C)
Heating 2 × 750 W
Materials SUS316 tank and wetted parts; SUS304 frame
Control PLC and HMI (7" touch screen)
Automation External pneumatic robot for basket transfer (standard)
