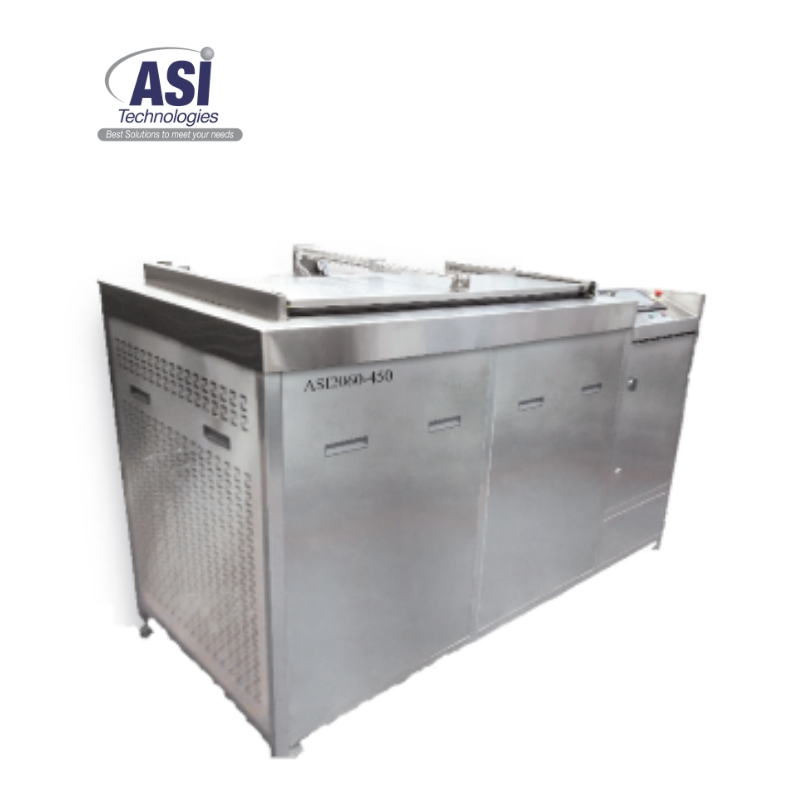

Vapor Degreaser ASI2060-450 Co-solvent / Mono-solvent

Two-chamber vapor degreaser with internal automatic basket elevator, co-solvent and mono-solvent versions

Item Number: 62050

ASI2060-450 Co-solvent | P/N 62050
ASI2060-450 Mono-solvent | P/N 62051

Manufactured by ASI Technologies  Israel with more than 20 years  of experience in the electronics production industry.

Effective cleaning with no damage to the products, absolute minimum of solvent losses, environmentally safe and suitable to various applications

Typical Applications:

    • Precision component cleaning



    • De-fluxing of electrical assemblies



    • De-fluxing of electronic assemblies before conformal coating



    • Removal of compounds from medical devices



    • Remove oil residue from metal parts

The ASI2060-450 is a two-chamber vapor degreaser (boil and rinse chambers) with a vapor zone and a dryer zone, available in co-solvent and mono-solvent versions. It is compatible with non-flammable halogenated solvents.

An internal automatic basket elevator transfers the basket through the process while the machine stays hermetically closed during the cycle, minimizing solvent loss. Two refrigeration systems create three cooling zones, and programmable basket oscillation is standard.

ASI2060-450 Co-solvent (P/N 62050): for co-solvent processes. Spray Under Immersion (SUI) in both chambers, with a 50 L/min circulation pump and 10 µm filtration in each chamber. Typical initial charge 122 L (82 L HFE + 40 L co-solvent). Optional ultrasonic unit in the rinse chamber (40 kHz, 300 W), P/N 62060.

ASI2060-450 Mono-solvent (P/N 62051): for mono-solvent processes. SUI, a 50 L/min circulation pump and a washable stainless-steel 10 µm filter in the rinse chamber, plus a cooling coil in the rinse chamber. Typical initial charge 122 L (mono-solvent). Optional ultrasonic unit in the rinse chamber (40 kHz, 300 W), P/N 62060.

The process is controlled by a PLC and HMI touch screen, and every stage can be programmed to the application requirements.

The ASI2060-450 is especially effective in challenging de-fluxing processes, supporting co-solvent materials with a high Kb value with no risk of damage to components or boards.

For more details and reservations click here
Parameter ASI2060-450 Co-solvent (P/N 62050) ASI2060-450 Mono-solvent (P/N 62051)
Configuration Two chambers (boil and rinse) with vapor zone and dryer zone; co-solvent process Two chambers (boil and rinse) with vapor zone and dryer zone; mono-solvent process
Tank size (nominal) 500 × 300 × 300 mm per chamber
Chamber internal dimensions Rinse (cold): 505 × 345 × 350 mm; boil (hot): 505 × 345 × 340 mm
Liquid level Rinse chamber 17–62 L; boil chamber 17–42 L (without water separator)
Initial solvent charge (typical) 122 L (82 L HFE + 40 L co-solvent) 122 L (mono-solvent)
Vapor zone / dryer zone 1048 × 200 × 415 mm each
Basket 450 × 250 × 250 mm; 2 standard baskets
Spray Under Immersion (SUI) Boil and rinse chambers Rinse chamber
Basket oscillation Programmable (standard)
Ultrasonic Optional, in the rinse chamber, 40 kHz, 300 W, P/N 62060
Circulation & filtration Pump 50 L/min + 10 µm filter in each chamber Pump 50 L/min + washable stainless-steel 10 µm filter in the rinse chamber
Heating 3 kW (boil chamber)
Distillation rate 60 L/h
Cooling 2 refrigeration systems, 3 cooling zones: −30 °C (middle coils), +2…+5 °C (upper and lower coils) 2 refrigeration systems, 3 cooling zones: −30 °C (middle coils), +2…+5 °C (upper and lower coils); cooling coil in the rinse chamber
Water separator 250 × 130 × 150 mm, 5 L
Materials Tank, tubes and wetted parts SUS316; external structure SUS304
Control PLC and HMI touch screen
Automation Internal automatic basket elevator with programmable basket oscillation; hermetically closed during the cycle
Solvents Non-flammable halogenated solvents; minimum 100% freeboard
Power supply 380 V, 3-phase, 16 A
Overall dimensions (W × D × H) 2110 × 1010 × 1270 mm (1450 mm overall height)
Net weight Net weight 400 kg (without cleaning agents)
Relevant Documents
ASI2060-450 Mono-solvent Datasheet Rev03 ASI2060-450 Mono-solvent Datasheet Rev03 ASI2060-450 Co-solvent Datasheet Rev06 ASI2060-450 Co-solvent Datasheet Rev06
✖

Receiving a document by email

Fill in your details and the file will be sent directly to your email address.

  • Two-chamber design: boil chamber and rinse chamber, vapor zone and dryer zone.
  • Internal automatic basket elevator; hermetically closed during the cycle.
  • Programmable basket oscillation (standard).
  • Spray Under Immersion (SUI): both chambers on 62050, rinse chamber on 62051.
  • Circulation pump 50 L/min with 10 µm filtration: each chamber on 62050, rinse chamber (washable stainless-steel filter) on 62051.
  • 2 refrigeration systems, 3 cooling zones: −30 °C middle coils, +2…+5 °C upper and lower coils.
  • Water separator (5 L); minimum 100% freeboard.
  • Tank and all wetted parts SUS316; external structure SUS304.
  • PLC and HMI touch-screen control.
  • Compatible with non-flammable halogenated solvents.
  • Option on both models: ultrasonic unit in the rinse chamber (40 kHz, 300 W), P/N 62060.
