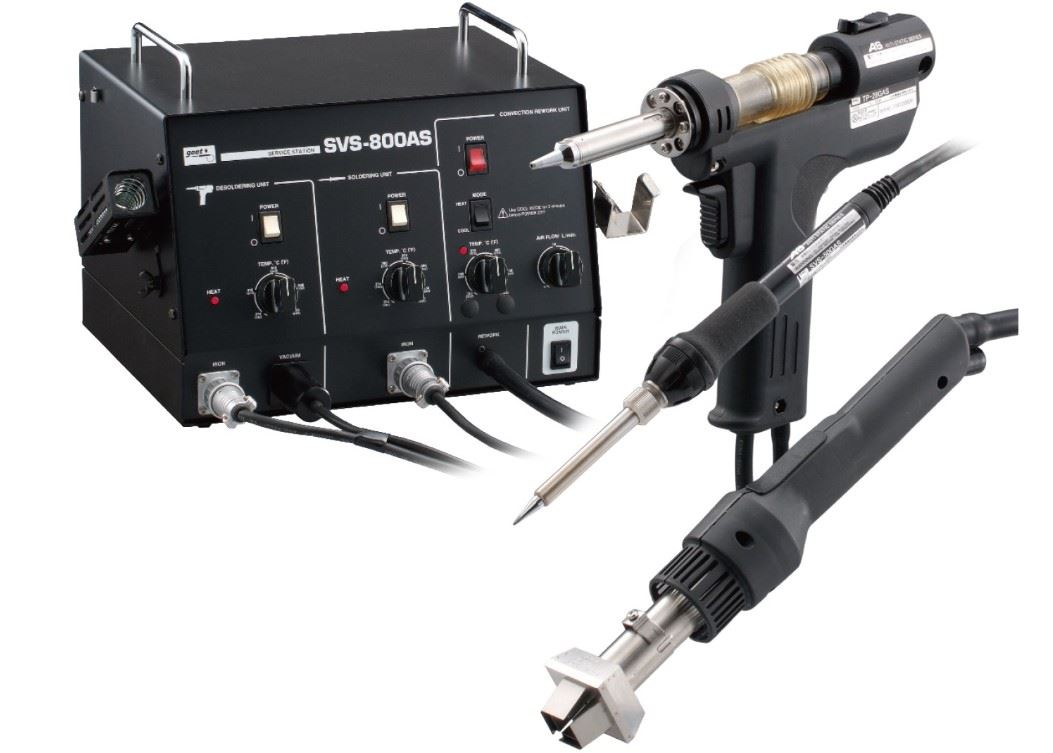

GOOT - SVS-800AS All in One Service Station

All-in-one soldering and rework station

Item Number: 5856

Omnifunctional machine for soldering, desoldering and reworking.

REWORK UNIT


The temperature can be set to max 550°C.

SOLDERING UNIT

Good for a wide range of soldering work with 70W heater.

DESOLDERING UNIT

Instant desoldering with open-valve mechanism.(Please refer to the next page.)

INDIVIDUAL POWER SWITCHES

Along with the main power switch, there are switches for soldering, desoldering, and reworking.

For more details and reservations click here
SVS-800AS MODEL
220-240V AC 50/60Hz Voltage
670-760W Power Consumption
1.5m Inlet type Power Cord Length
250–450°C Desoldering Unit
200–480°C Soldering Unit Temp. Setting Range
150-550°C Rework
Over 10MΩ(500V DC) Insulation Resistance
Diaphragm system Vacuum Pump System
0.08MPa (-600mmHg) – Vacuum
5-25L /min Air Flow

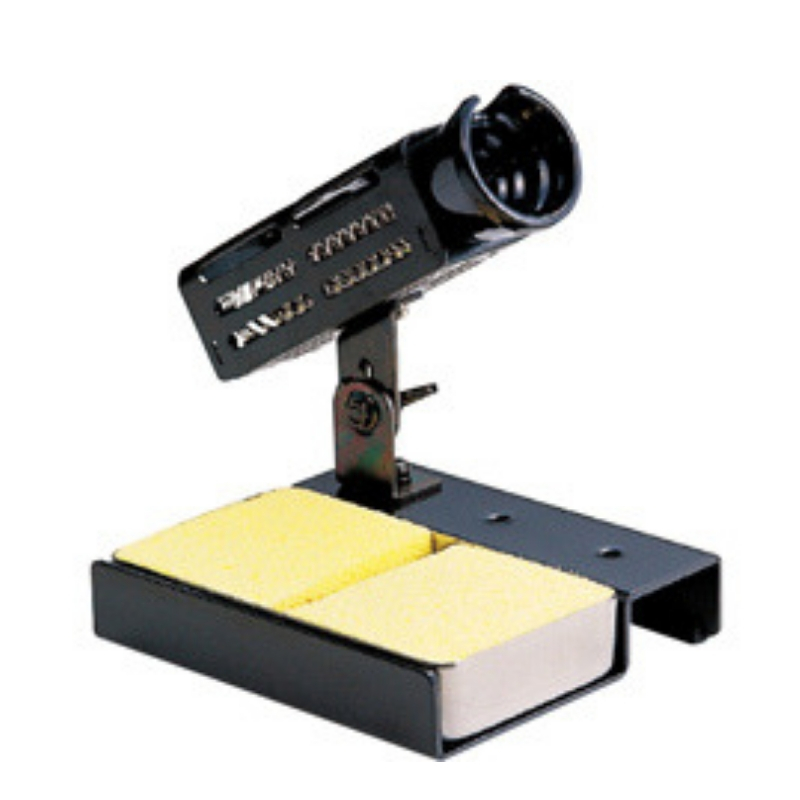

Cleaning pin TP-100CP-13 / Soldering iron stand ST-76 Accessories
9.3kg Total Weight

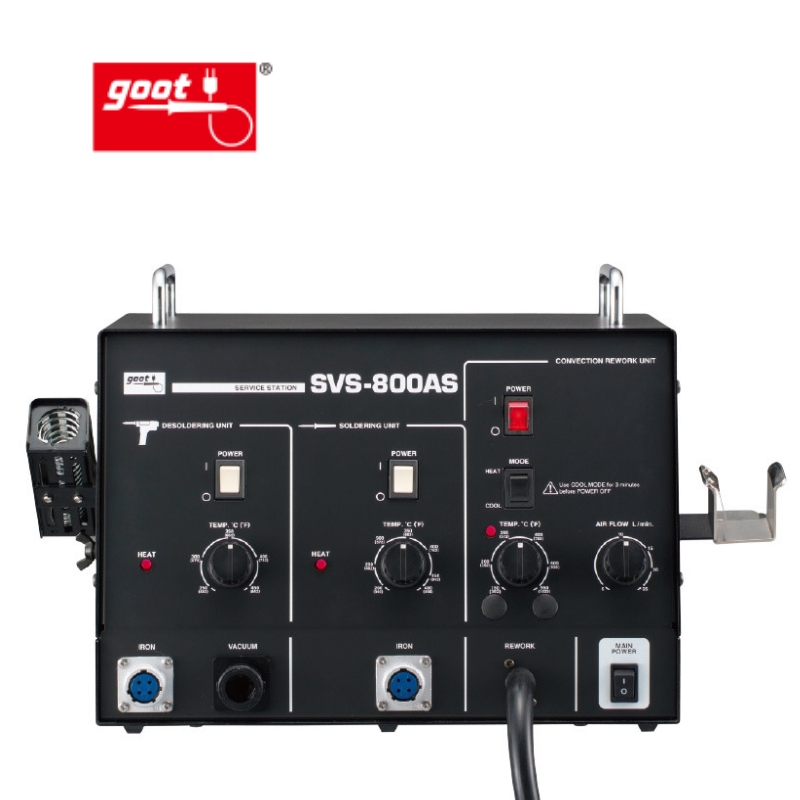

CONTROL BOX
220-240V AC Output Voltage
240(H) × 235(D)mm × (W)405 Dimensions
8.4kg (w/o cord, hose ) Weight

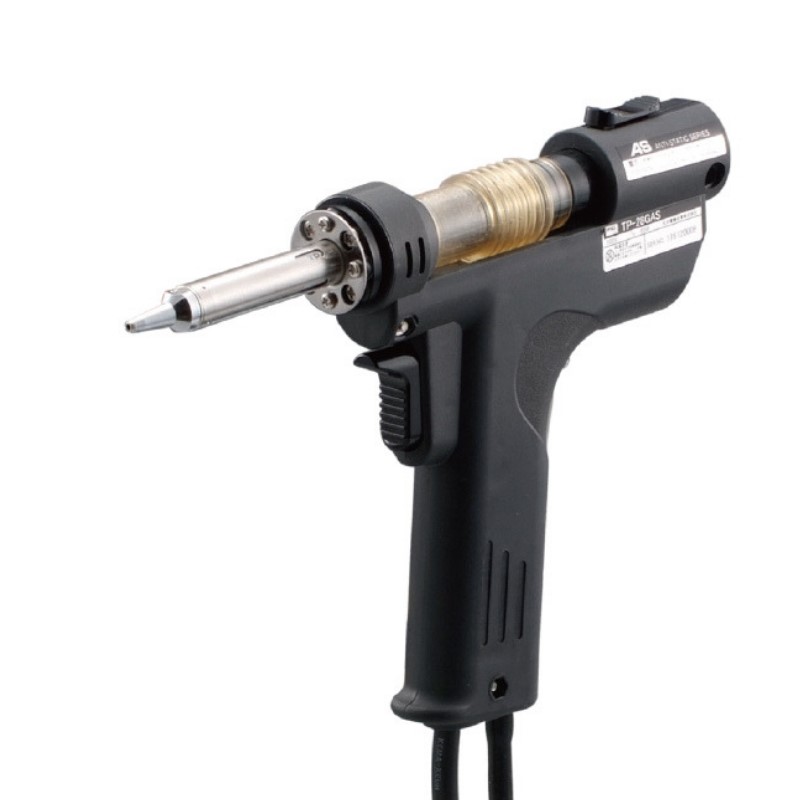

DESOLDERING UNIT
220-240V AC / 85W Input Voltage/Power Consumption
Ceramic Heater Heater
1.2m Cord Length
220 x 155mm Dimensions
250g (w/o cord, hose) Weight
TP-100N-S5 Standard Nozzle



SOLDERING UNIT
220-240V AC / 70W Input Voltage/Power Consumption
Less than 2Ω Ground Resistance
Less than 2mV Leak Voltage
Ceramic heater Heater
1.2m Cord Length
190mm (with PX-2RT-B, w/o cord bushing) Length
70g (with PX-2RT-B, w/o cord) Weight
PX-2RT-B Standard Tip

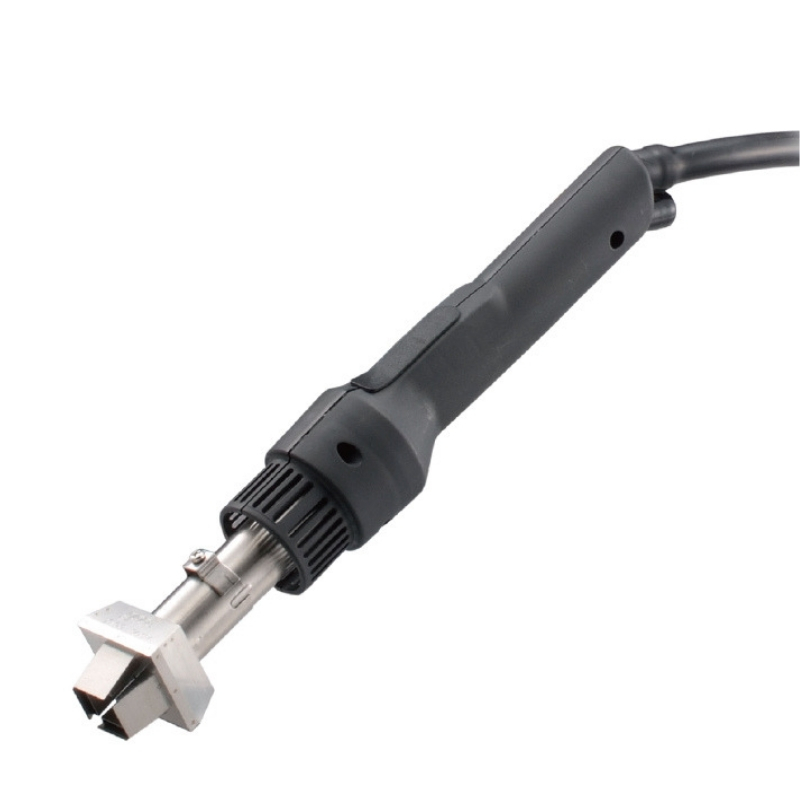

REWORK UNIT
220-240V AC / 370-430W Input Voltage/Power Consumption
Nichrome Heater Heater
1m Hose length between Handpiece and Control Unit
220mm (w/o cord) Length
180g (w/o nozzle, cord) Weight
