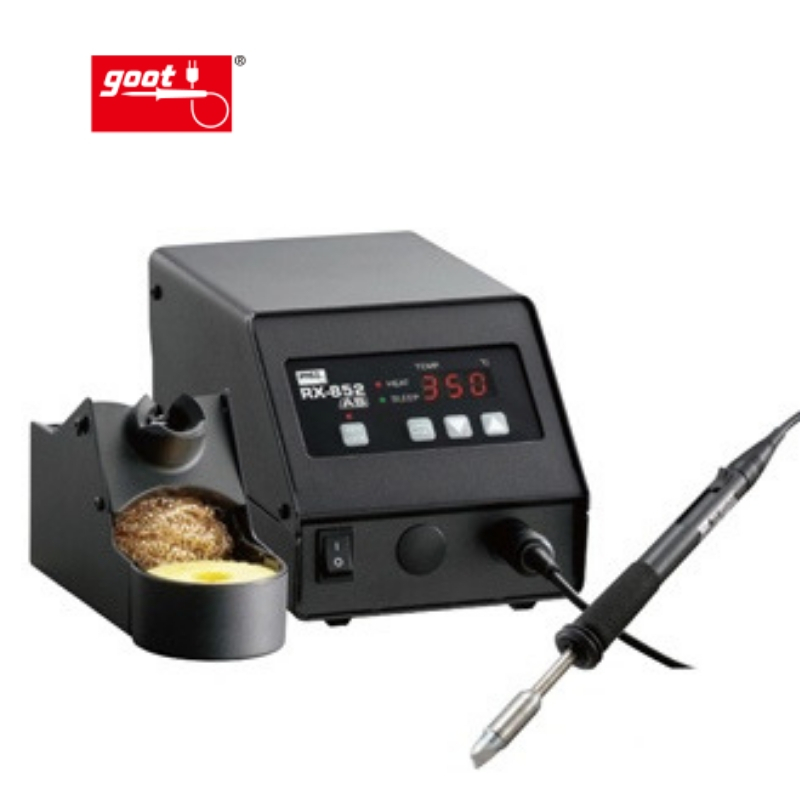

Goot - RX-852AS Soldering Station 150W

High Power, Rapid Thermal Recovery

Item Number: 4728
Phenomenal heat recovery with 150W compact high-output heater.
Excellent heat recovery has been achieved by combining a 150W compact high-output heater with a high-sensitivity sensor.

Included:

Station Unit, Soldering Iron (RX-85GAS / Tip is not included), Soldering Iron Stands (ST-21) Brass Wool & Sponges included, Inlet Power Cord
Features:

  • Fastest in Its Class

  • Reaches 350°C in only 14 seconds. (Only 6 seconds when using RX-80HRT tips.)

  • Light and Compact Handpiece

  • Same size as the RX-80GAS.

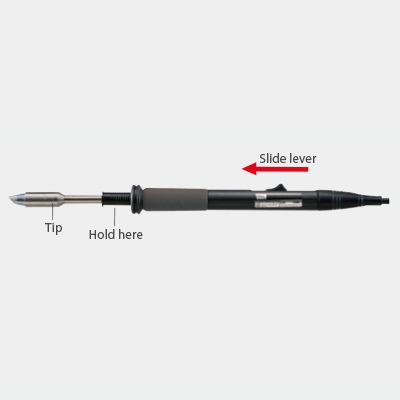

  • Tip Replacement without Tools (PAT.)

  • Slide-change tip. Easy to replace a hot tip without any other tools.

  • Thick Tip Coating for Lead-free Soldering

  • All tips have extra-thick iron plating, to resist erosion by lead-free solder.

  • RX-80HRT Tips also Available

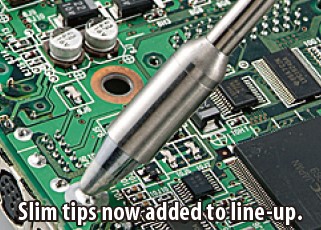

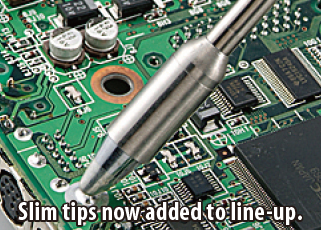

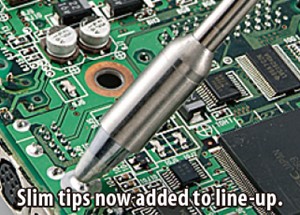

  • More than 40 tips are available, including the RX-80HRT tips.

לפרטים נוספים והזמנות לחצו כאן
מפרט טכני
דגם RX-852AS
מתח הפעלה 110–120V, 220–240V AC 50/60Hz
צריכת הספק 145–170W
אורך כבל חשמל 1.5 מטר (סוג Inlet)
טווח הגדרת טמפרטורה 50–450°C
יציבות טמפרטורה (Ripple) ±5°C (ללא עומס)
התנגדות בידוד מעל 100MΩ (ב-500V DC)
אביזרים מעמד למלחם (ST-21)



יחידת בקרה
מתח מוצא 24V AC
מידות (W x H x D) 116 x 105 x 194 mm
משקל 4.8 ק"ג



יחידת הלחמה
מתח / צריכת הספק 24V AC / 150W
התנגדות הארקה פחות מ-2Ω
מתח זליגה פחות מ-2mV
גוף חימום ניכרום (Nichrome heater)
אורך כבל 1.5 מטר
אורך המלחם 174 מ"מ (עם ראש RX-85HRT-5D)
משקל 39 גרם (עם ראש RX-85HRT-5D)
